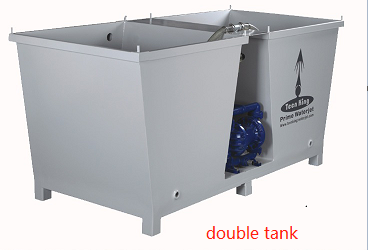

Sludge Removal System

Depend on the size of water capture, the sludge removal system is designed by one pump or multi pumps, it works by air pressure with volume 10m3/hr/ pump, and will start when high pressure pump is working, controlled by CNC.

TeenKing has pears of practical experiences, which we have designed this sullage removal system, through the embedded pipes which are at the bottom of the water tank, uses this high efficient automatic clearing pump, circulating the mud water out of the water tank to the ton bag which is in the sullage removal system, and the redundant sewage back into the water tank such a continuous circle, until the mud is full in the ton bag, remove it with a forklift or crane, no human labor is needed with this whole process, besides that, the machine don’t have to stop and wait for a second, creates a clean working condition.

It will produce a large amounts of mud water and sand mud sediment after cutting works, more and more sand mud sediment will eventually fill the water tank,  and water tank cleaning work is very hard and aversive, you need about 1 day to clean this with at least 2 workers at the same time, and also facing environmental pollution while doing this process.

This simple and high efficient sullage removal system is designed by TeenKing, the principle is: during the cutting process, through the high efficient automatic cleaning sludge pump (pneumatic diapghragm pump), from the embedded pipes which are in the bottom of the tank, there are small holes on the pipe to such the mixed mud sewage continually, it pumps to the large container which is inside the sullage removal system (normally the ton bags), after deposition, the sewage water returns back to the water tank, and the sand mud stays remain in the ton bag until its full, remove it with crane. The whole process of automated, without any human operation.
